Magnetic coolant separator MS60

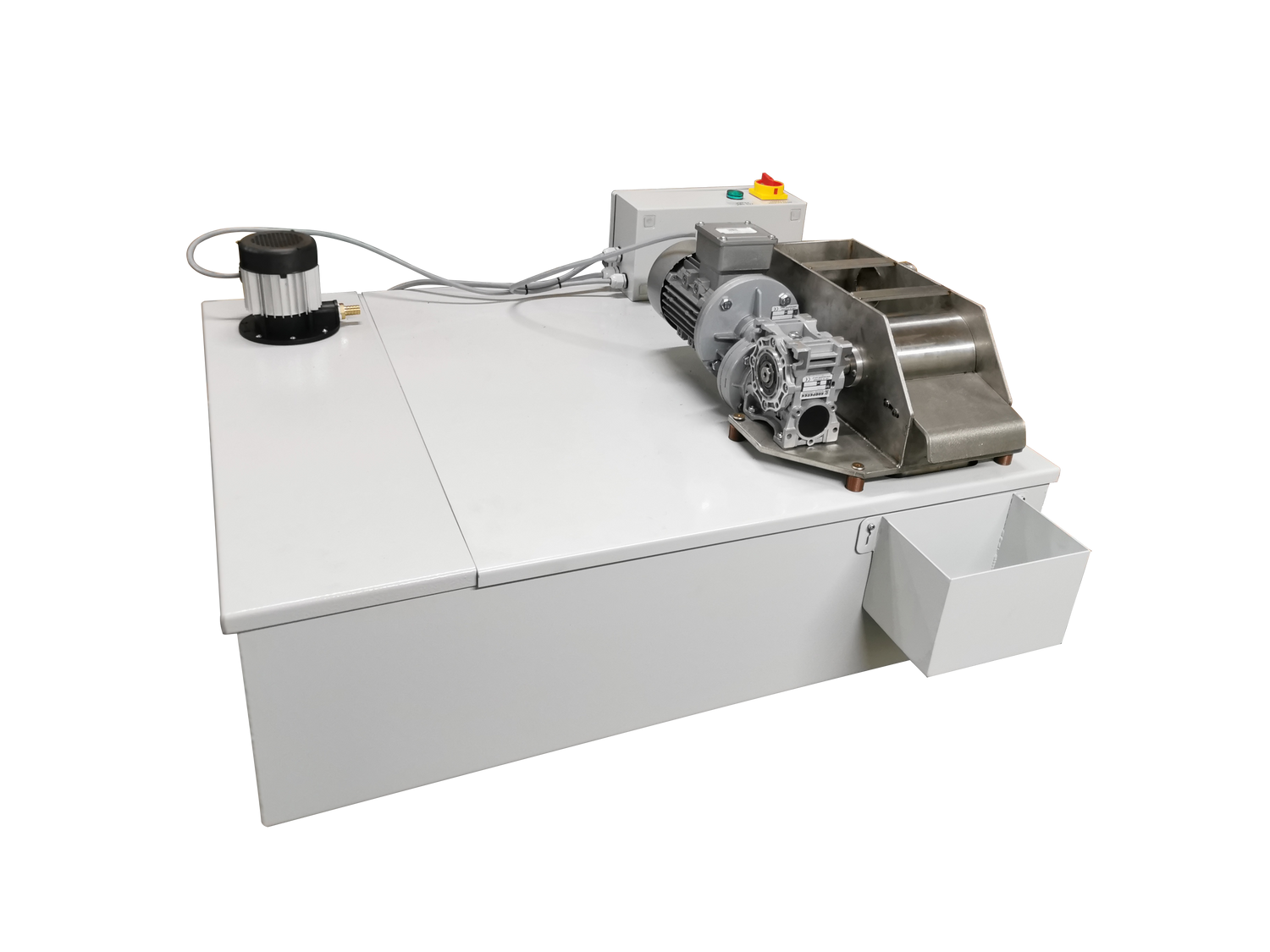

MS60 Separator – magnetic coolant separator with magnetic drum

MS60 Separator is a robust industrial unit for cleaning coolant of ferromagnetic contaminants (e.g. fine metal chips). Thanks to a strong magnetic drum, it separates swarf effectively while maintaining a high degree of filtration.

The separator can work both on a single machine tooland as part of a central filtration system.

Operating principle

The separator is equipped with a rotating magnetic drum made of stainless steel, containing strong neodymium magnets.
Coolant contaminated with swarf flows from the machine tool onto the drum surface. As it flows through the separator, metal particles are held on the drum surface and the cleaned coolant flows into the tank.

Scrapers effectively remove sludge from the drum, ensuring continuous and stable operation of the system.

The filtration cycle repeats in a closed loop – coolant is drawn from the tank and returned to the machine by the pump.

Application

Ideal for machine tools such as:

• lathes,

• milling machines,

• grinders,

• machining centres and other machines using coolant in a closed loop.

The set includes

• Magnetic separator MS60,

• Mobile tank on castors with a capacity of 150 litres, equipped with:

  • 1/2-inch outlet stub,

  • drain valve,

  • sturdy baffles inside the tank,

• Coolant pump with a power of 0,09 kW, flow rate 60 L/min,

• Electrical box with switch,

• Separator drive motor 0,09 kW / 900 rpm with gearbox i80,

• Power cable included.

Technical specification

• Separator body material: stainless steel – base 10 mm, walls 5 mm,

• Magnetic drum: stainless steel with neodymium magnets,

• Filter inlet diameter: 60 mm,

• Separator drive: 0,09 kW motor + i80 gearbox,

• Coolant pump: 0,09 kW, 60 L/min,

• Filtration capacity: 60 L/min,

• Power supply: can be connected directly to the mains or wired into the machine tool system.

Why choose it?

• Effective protection of the pump and tools against wear,

• Lower coolant consumption,

• Less service downtime,

• Longer life of the entire cooling system.

100% Polish product – designed and manufactured by GRAFS Technology.
