Fleece filter coolant separator PS60

Fleece coolant separator PS60 – precise filtration of process fluid

PS60 is a reliable unit for filtering coolant from non-magnetic contaminants such as abrasive particles, ceramic dust and fine sludge from grinding cemented carbides and non-ferrous metals. Thanks to a special filter fleece, it ensures a high level of cleaning of the process fluid, which translates into longer tool life and a more stable machining process.

The separator can work on its own or in tandem with a magnetic separator (e.g. MS60), forming a complete filtration system.

Operating principle

Contaminated coolant flows by gravity onto the surface of the filter fleece. Contaminants settle on the surface of the material, forming a so-called "secondary filter" that increases particle retention efficiency.

When the coolant rises to a set level, the float sensor triggers advancing of the used fleece. a new section of fleece is automatically advanced, and the cleaned coolant flows into the tank and is then returned to the machine by the pump.

Application

• Tool and precision grinders

• Machine tools for cemented carbides and non-magnetic metals

• Machining centres requiring high-grade coolant

• Combined with a magnetic separator – for filtering mixed swarf

Unit capacity

• Stable filtration capacity: 60 L/min

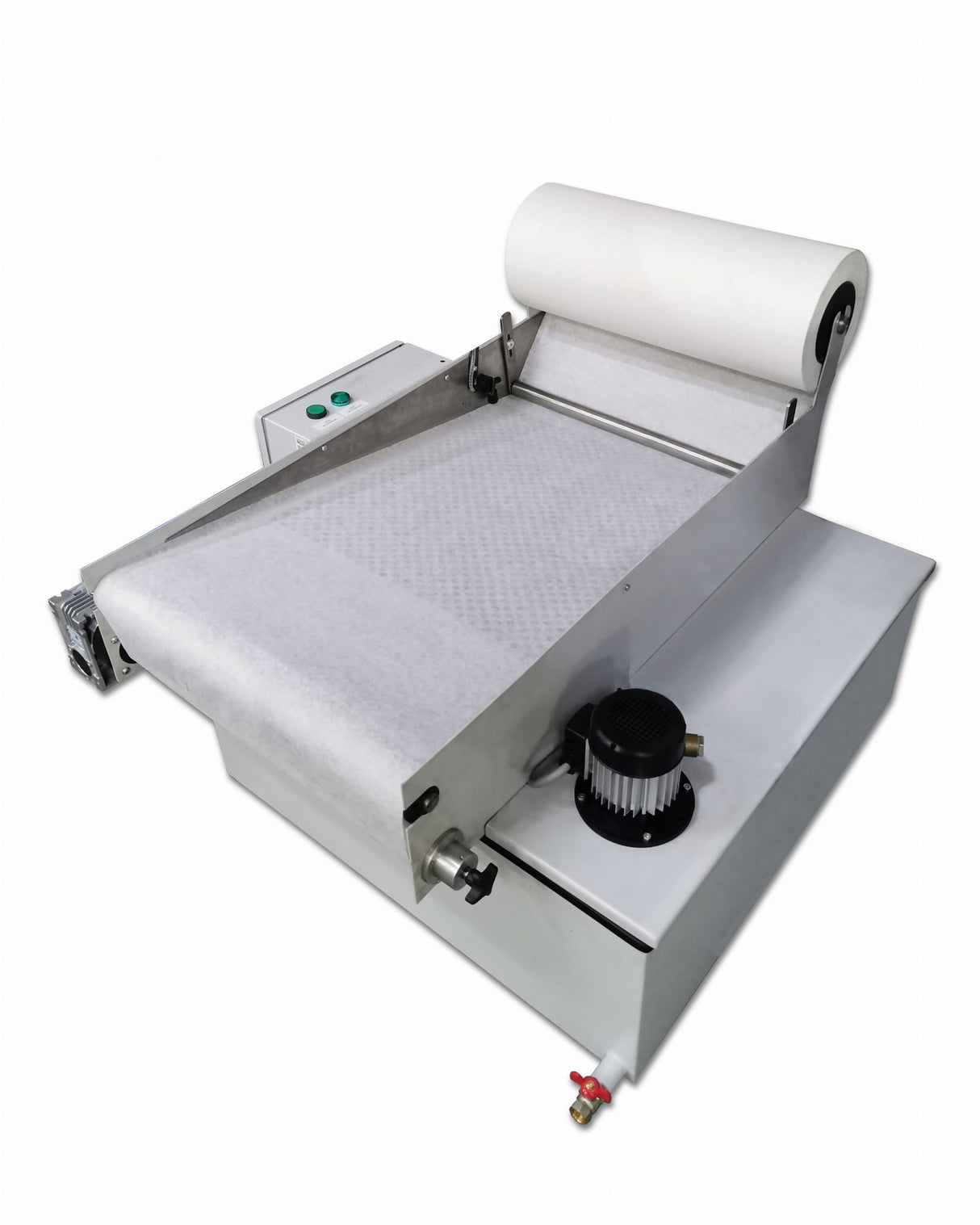

The set shown includes:

• Fleece separator PS60 with automatic fleece advance,

• Mobile tank on castors with a capacity of 150 L, equipped with:

  • 1/2-inch drain valve,

  • baffles inside the tank,

• Coolant pump with a power of 0,09 kW, flow rate 60 L/min,

• Electrical box with switch and protection,

• Coolant level sensor integrated with the fleece advance drive,

• Starter fleece set on a roller, ready to use,

• Power cabling – ready to connect.

Technical specification

• Model: PS60

• Filter type: gravity type with automatic fleece advance

• Feed control: float sensor

• Power supply: 380 V

• System capacity: 60 L/min

• Pump: 0,09 kW

• Coolant tank capacity: 150 L, mobile

• Dimensions: Width: 120 cm, length: 120 cm, height: 55 cm,

• Weight: 100 kg,


• Expansion options: works with magnetic separators (e.g. MS60)

Why choose it?

• Reliable cleaning of coolant from fine non-magnetic particles

• Automatic fleece advance – maintenance-free operation

• Can be integrated with an existing filtration system

• Polish design and manufacture – full availability of spare parts

GRAFS sells filter fleeces in various sizes, densities and grammages. We can adapt the filter fleece to your needs.

100% Polish product – designed and manufactured by GRAFS Technology.
